Rainwater harvesting has emerged as a significant national initiative in India. Historically, the country has witnessed several movements focused on groundwater recharge. Today, numerous government and non-government organizations are actively engaged in researching and developing innovative solutions to enhance groundwater replenishment. Among these methods, the Percolation Tank stands out as one of the most traditional yet widely used and effective approaches.

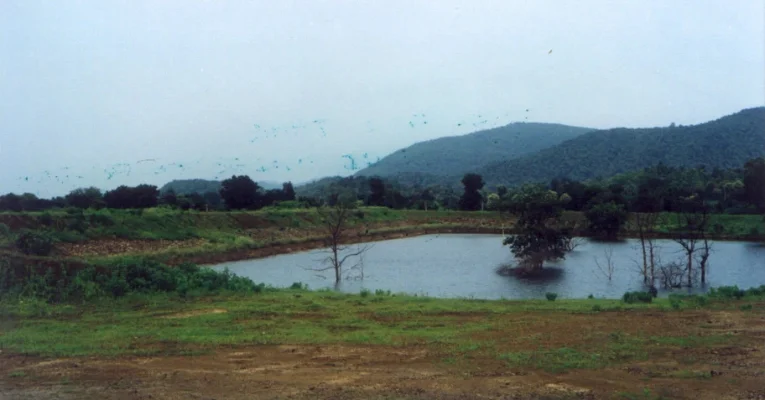

What is a Percolation Tank?
A percolation tank is an artificially-constructed tank which is designed for the sole purpose of capturing and holding surface runoff water, mainly during the monsoon season. Unlike traditional water storage systems, these tanks will let the water that is stored gradually seep into the ground, essentially recharging underground water aquifers and improving groundwater levels in the areas that surround them.
The idea is simple but ingenious – instead of letting precious rainwater flow away as surface runoff, a percolation tank captures this water and promotes its natural infiltration into the soil to produce a sustainable source of groundwater for communities.
How a Percolation Tank Helps To Solve Water Problems
Understanding how a percolation tank contributes to solving water-related issues is important to understand how critical it is:
Groundwater Recharge: Main purpose is to recharge dried up Aquifers by letting collected Rainwater percolate through the permeable layers of soil, this technology directly solves Groundwater Depletion Problems prevalent in most parts of India.
Flood Control: During heavy monsoons, these tanks trap excess run off that would otherwise cause flooding, shielding downstream areas from water damage, while storing water for future use.
Agricultural Support: By ensuring higher groundwater levels, a percolation tank assists to ensure more reliable water sources for irrigation, supporting farmers in drought-prone regions and improving agriculture productivity.
Soil Conservation: The controlled water infiltration process aids in preventing soil erosion while enhancing soil moisture content, creating favourable conditions for vegetation growth and land restoration.
Understanding Percolation Tanks: Design, Construction, and Effectiveness
Percolation tanks are artificial reservoirs constructed across streams to collect and store surface water runoff, allowing it to gradually seep into the ground and recharge the groundwater table. These structures are among the most effective and widely adopted methods of groundwater recharge in India.
Site Selection
The effectiveness of a percolation tank largely depends on proper site selection.
- They are ideally built in terrains with permeable soil or fractured and weathered rock formations that promote rapid percolation.
- Sites with good or average catchment areas and a long-term pattern of adequate rainfall are most suitable, ensuring the tank fills during the monsoon season.
- The aquifer to be recharged should have at least 3 meters of permeable vadose zone to accommodate the recharged water.
- Excessively high permeability should be avoided, as it can cause water to escape downstream as regenerated surface flow, reducing groundwater recharge.
Construction Features
Percolation tanks are typically earthen dams with masonry structures for the spillway and are often built across second or third-order streams.
Key construction elements include:
- Embankments: Formed with stable slopes and adequate freeboard provisions to handle floods.
- Inlet and Outlet Systems: To ensure controlled flow of water.
- Spillway: Usually masonry, to manage excess flow during heavy rains.
- Cut-off Trenches: Similar to those in minor irrigation tanks, with differences to suit recharge needs.
To reduce silting at the tank bottom, the catchment area should preferably have light sandy soils.
Capacity and Design Considerations
The capacity of a percolation tank is determined by the catchment area, local rainfall patterns, and the capacity of the strata in the tank bed.
- Percolation tanks are generally designed with a storage capacity of 0.1 to 0.5 million cubic meters (MCM).
- The ponded water column is usually maintained between 3 and 4.5 meters.
- Construction includes an earthen or masonry embankment, with proper slopes and freeboard to ensure stability.
Additional Guidelines
- The benefitted area should have sufficient wells and hand pumps to make use of the recharged groundwater.
- A long-term evaluation of rainfall patterns is necessary to ensure that the tank fills adequately during the monsoon season.
Benefits to Indian Communities
The installation of percolation tanks throughout the country of India has shown spectacular benefits to the people and the environment. These structures are a good means for groundwater recharge, for both domestic water requirements and agriculture in drought susceptible areas
Beyond the security of water, a percolation tank is useful in improving the quality of water through naturally occurring filtration as water moves through the layers of soil and the impurities and contaminants are filtered out. This natural purification process results in cleaner groundwater for the community to use.
The better groundwater levels due to effective percolation tank systems directly translate to better agricultural productivity, as farmers have access to more reliable irrigation sources all year round, rather than just in the monsoon seasons.
Maintenance and Long-Term Sustainability
To maintain long-term effectiveness, percolation tanks require regular annual maintenance. The most important task is periodic desilting, carried out at least once a year, to remove the accumulated silt and debris that can reduce both the percolation efficiency and storage capacity of the tank.
Annual maintenance also includes the inspection and repair of embankments and proper vegetation management around the tank area to ensure structural integrity and optimum performance over the years.
At NIPSTec, we specialize in the Maintenance of Rainwater Harvesting Systems, including percolation tanks. Our expert team ensures that the structures remain efficient, sustainable, and continue to recharge groundwater effectively while also creating local employment opportunities during maintenance activities.
Success Stories Across India
Percolation tanks have been far more successful in states such as Maharashtra, Rajasthan and Uttar Pradesh, where monsoon-dependent agriculture and frequent droughts have made water conservation very important. Case studies in these areas have shown substantial gains in groundwater and water security for rural communities.
The widespread adoption of percolation tank technology throughout India is a practical and cost-effective solution to the challenge of water scarcity and can contribute to sustainable agricultural practices and rural development initiatives.
By understanding what a percolation tank and how these structures function, communities can make informed decisions about implementing this proven water conservation technology in order to secure their water future and build resilience against drought conditions.
